Army Defensive Barrier Wall Flood Prevention Defense Wall Town Flood Prevention
Introduction of Military Barriers :

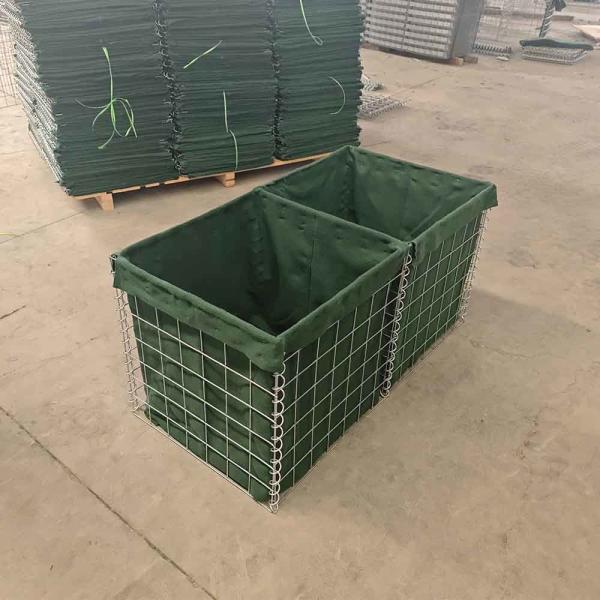

The Obstructive Barrier System, popularly known as the explosion-proof and flood-control wall, is constructed using interlocking metal mesh cages and geotechnical fabric envelopes. Fillable with pulverized sand, stabilized earth, or crushed stone, it functions as an eco-friendly alternative to traditional sandbag fortifications while enabling material reuse. Distinguished from classic gabion structures, its dual-chamber design allows for mixed-loading of both solid stones and granular media. On-site material preparation is viable, making it ideal for stone-scarce environments such as river deltas or beachfronts. With the support of automated loaders and articulated cranes, deployment rates achieve up to 50-100x improvements over manual sandbagging. Deployed as military hardware, it transforms into rapid-deploy bunkers, defensive strongholds, and tactical command centers, substituting labor-intensive dug trenches to curtail personnel casualties. The barrier’s recyclable nature streamlines redeployment, ensuring versatile protection across dynamic operational theaters.
Defensive Barrier Wall specification:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Mesh gabion box Application:
Perimeter Security and Defence Wall
Equipment Revetments
Personnel and Material Bunkers
Observation Points
Defensive Firing Positions
Guard Posts
Explosives and Contraband Search Areas
Highway Checkpoints
Border Crossing Checkpoints
Protecting Existing Structures
Flood control retaining wall
Coastal Erosion
Protection engineering of seaside area.
Defensive Barrier Wall advantage
1.Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit the destructive effects of explosions within a certain range.
2.Compared with the reinforced concrete explosion-proof wall, it has the advantages of light weight, easy loading and unloading, recyclable and reusable.
3.The Defensive Barrier cage produced by our company has as many as 12 specifications, in various colors such as earthy gray, earthy yellow, grass green, etc., and can be flexibly combined to apply to different scenes or purposes.
